Introduction: A New Standard in Lighting Innovation
When you are the boss of a huge business empire, do you pay much attention to your office environment? Have you ever thought about how to make your office look upscale and bright? In daily life, in fact, lighting is something we absolutely need. When you own a big house, have you ever thought about how to decorate it?
Whether it’s a home, an office, a street, a landscape, an industrial area, a ship, an airplane, etc. Light is always constantly around us. This lighting product, with the development of society, its appearance, performance, design, etc. have all been an important milestone. We cannot forget the lighting products of the past, and we are more willing to accept the modern civilized lighting products.

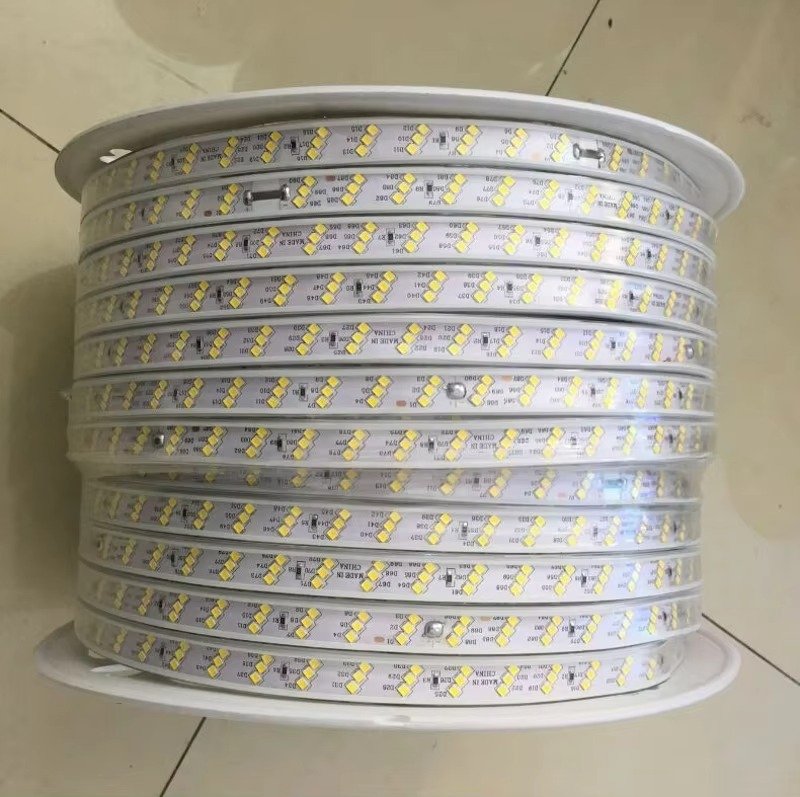

Let me recommend a lighting product for you.LED Strip Light , AC220V SMD 2835 180LED IP67 12mm PCB Board 3rows -Morden strip light .
Currently, the strip light of AC220V SMD 2835 180LED IP67 12mm PCB Board 3rows is one of the common lighting products we see.
Let us together understanding Advantages of the focus strip light parameters
1) AC220V: High-voltage direct drive, eliminating “voltage drop” worries
What is the biggest problem with most household low-voltage light strips (such as 12V or 24V)? It’s the voltage drop. Usually, beyond 10 meters, the brightness at the end will significantly decrease.
· Features: This light strip adopts AC220V (alternating current 220 volts) high-voltage input. · Advantages: It can be directly connected to the mains power supply without the need for an external large transformer. Due to the high voltage and small current, its transmission distance is very long. With single-end power supply, it can easily reach 50 meters or even 100 meters, and the brightness at both ends is uniform and consistent.
2) SMD 2835 LED type :SMD2835 light bulb: The “main force” for achieving high luminous efficiency and heat dissipation balance
In the market, the SMD 2835 lamp beads are commonly seen. Because this is one of the most widely used and technologically mature medium-power surface-mount LED chips in the current LED lighting field. Its name is derived from its physical dimensions: 2.8mm (length) x 3.5mm (width).
· Larger light-emitting area: The 2835 light-emitting surface (the light-transmitting area above the LED chip) has been expanded, which has increased by approximately 2-3 times compared to the 3528. This means that under the same current, the luminous flux is higher, the light distribution is more uniform, and the graininess is reduced.
Independent heat dissipation pads: At the bottom of the 2835 light beads, there is an independent heat sink (usually made of metal), which is directly heat-conducted through the copper foil of the PCB board. For the 180 LED/m three-row high-density light strip described in this article, this heat dissipation structure is crucial – it can effectively conduct heat, control light attenuation, and extend the overall lifespan of the light strip. · Ultra-thin packaging: The thickness is approximately only 0.8mm, combined with a 12mm wide board design, the overall light strip is thin and easy to be embedded in narrow lamp slots.
3) 180LED & 3Row: “Dimension Reduction Attack” on Density and Arrangement
Ordinary light strips usually have single rows of LED chips, with 60 or 120 LEDs per meter. The core feature of this product lies in its 3row design and 180 LEDs per meter (180 LED chips per meter).

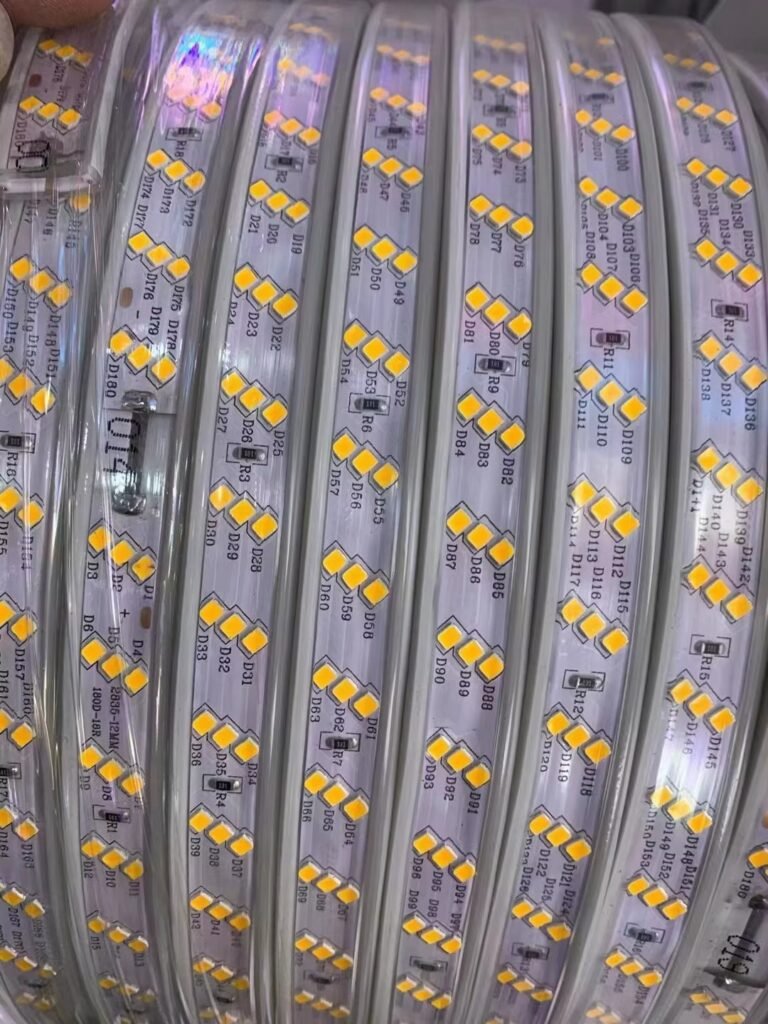

Physical structure: On a 12mm-wide PCB board (flexible circuit board), three rows of bright LED bulbs are arranged in parallel.

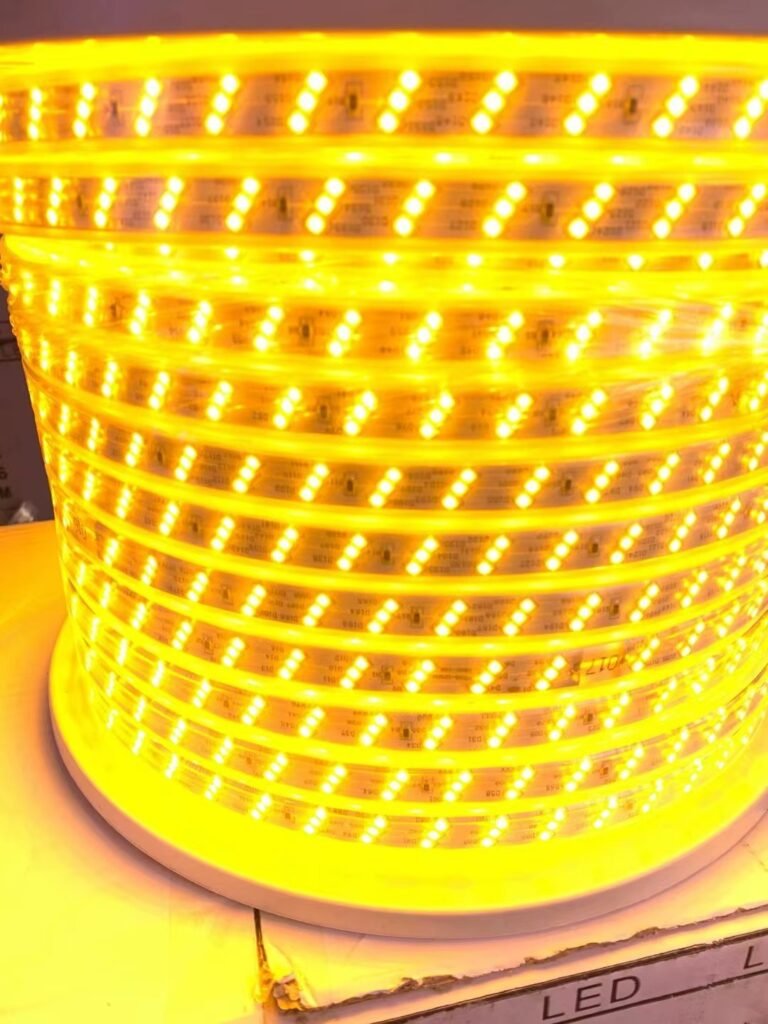

· Light efficiency improvement: Compared to a single row of light strips, the three-row design provides three times the luminous flux. With an ultra-high density of 180 per meter, this light strip almost eliminates the common “granular effect”, and when lit, it presents a continuous light band instead of individual light points.
· Application scenarios: This high-density design is particularly suitable for places that require high-brightness wall washing (i.e., evenly illuminating the wall with light), or as the main light source in large spaces. Additional note.
4) IP67: The True Protection Level Capable of Withstanding Water Exposure
The common waterproof grades for light strips include IP20 (for indoor bare boards), IP65 (for protection against splashing water), IP67 (for protection against short-term immersion), and IP68 (for protection against long-term submersion).
5）12mm PCB Board: The Heat Dissipation Benefits of Wide Boards
The width of the PCB (printed circuit board) determines the heat dissipation area. Most common LED strips on the market are 8mm or 10mm wide.
Heat dissipation advantages: The 12mm wide board design, combined with the arrangement of three rows of LED chips, actually increases the contact area between the aluminum base plate (or FR-4 fiberglass board) and the air. · Lifespan guarantee: Since it uses AC220V high-voltage driving and has a high density of LED chips, the power is naturally not low. The 12mm wide board provides a more efficient heat conduction path for heat, effectively reducing the light decay of the LED chips and extending the lifespan of the LED strip.
Apart from physical parameters, the color temperature and color presentation of the light strip directly determine the final atmosphere of the space. This light strip usually offers the following several mainstream options, which are suitable for different scenarios.

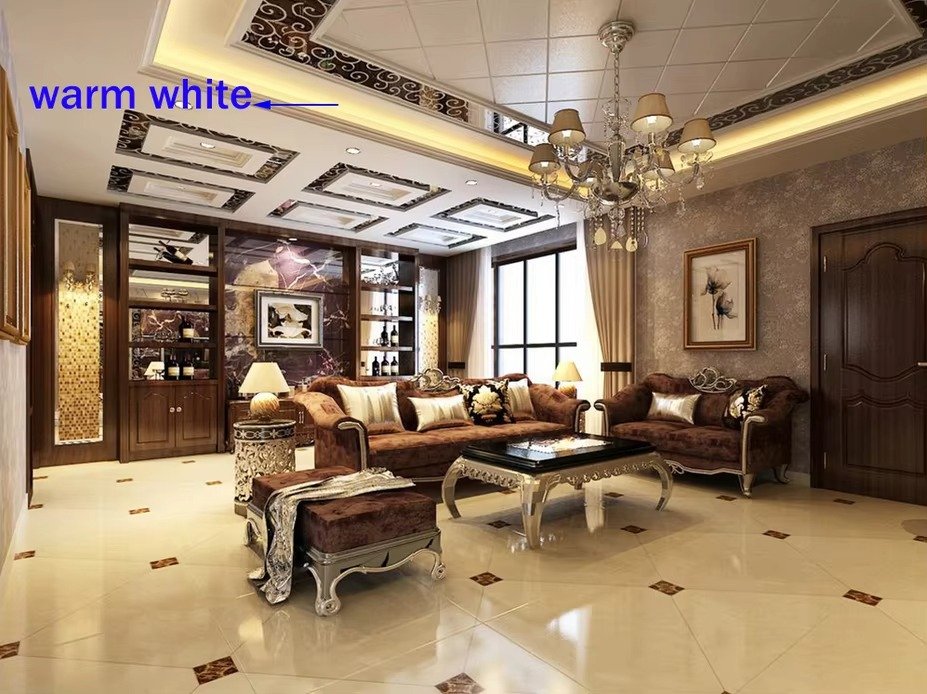

1）2700K-3000K（Warm white）: Mainly applicable to hotel rooms, villa bedrooms, restaurants, and other places that need to create a relaxing atmosphere.

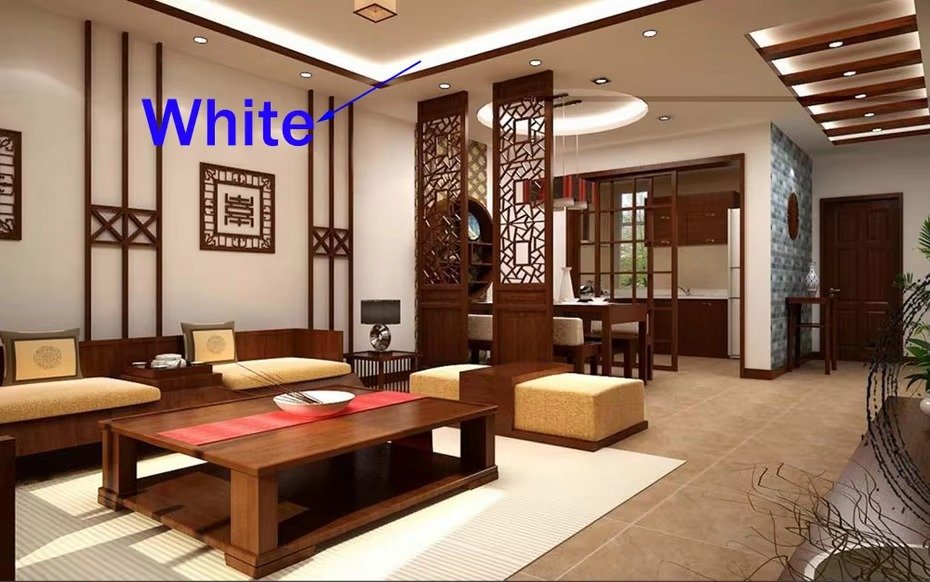

2）4000K-4500K （Neutral white）: Mainly applicable to commercial spaces, offices, store counters in shopping malls, kitchen workbenches – the most versatile choice
3) 6000K-6500K (Cool white): Mainly applicable to factory workshops, warehouses, outdoor lighting, and places requiring high concentration.
Color selection suggestions: For the outlines of outdoor buildings, 3000K warm light can better highlight the texture of stone or wood, creating a “premium” effect; while 4000K natural light is the safest and has the best color rendering property in commercial spaces, allowing for the true reproduction of product colors.
Taking into account the characteristics of “high voltage, high brightness, high protection, and wide board”, this type of light strip is actually not very suitable for the following scenarios:
- Large commercial spaces: such as ceiling light channels in shopping malls and shelf lighting in supermarkets, requiring long-distance without voltage drop, high brightness, and low installation cost.

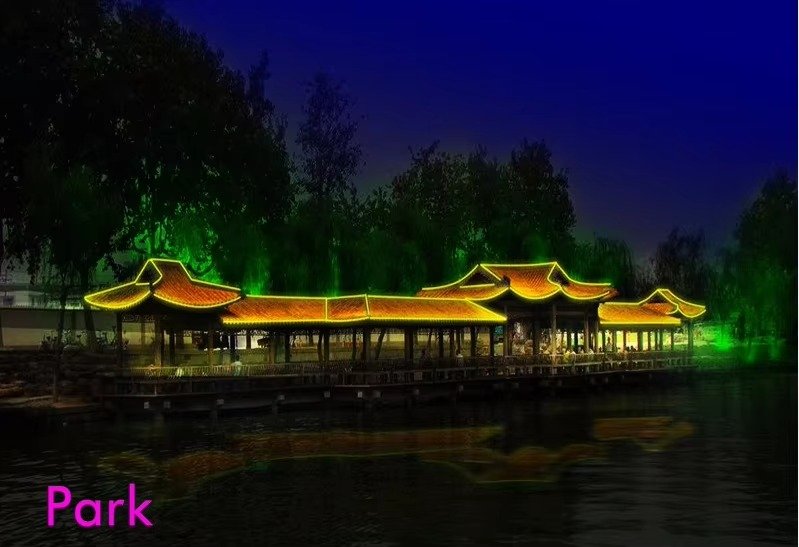

- Outdoor building outlines: eaves of villas, lighting of bridges, and outlines of hotel facades, requiring IP67 waterproof level to withstand sunlight and rain.
- Industrial and special places: warehouse with high brightness lighting, or ground light strip channels that need to be regularly washed with water.
Conclusion
AC220V solves the problem of long-distance power supply, 180 LED/3row addresses the issues of brightness and light efficiency, IP67 grants it the ability to survive in harsh outdoor environments, and the 12mm wide board serves as the foundation for long-lasting hardware.
If you are looking for a light strip suitable for large-scale projects, aiming for ultimate brightness, and not wanting to spend too much effort on power wiring, this parameter combination is undoubtedly a highly competitive choice in the current market.
