LED light strips have now become one of the popular choices for illuminating homes, stores and outdoor spaces. They are flexible, energy-efficient and easy to install. However, when you need long-term continuous lighting, such as for building edges or outdoor signs, ordinary LED light strips cannot meet the requirements. The brightness of 12V or 24V light strips may decrease, and additional power sources are required.
High-voltage LED light strips (110V/220V) perform at their best in this situation. They are directly connected to the AC power supply and can provide bright and uniform light over long distances without any loss of brightness. Whether used for decoration, highlighting architectural features, or illuminating large areas, these light strips are intelligent and efficient choices. This guide will explain what they are, how they work, their advantages, and how to choose the right light strips.
What is a high-pressure light strip?
High-voltage LED light strips are a type of flexible light strips. They can be directly powered by 110V or 220V AC power supply. Due to the built-in rectifier, no external driver is required. This makes the installation simple and ensures stable brightness when providing long-distance lighting.
In practical applications, the high-voltage LED light strips can illuminate an area up to 50-100 meters away with a single connection. No dimming or voltage drop is required. The circuit design is intended to maintain a uniform current, thereby achieving consistent lighting effect from beginning to end. Most products feature waterproof silicone casings with a protection level of IP65-IP68, and can be safely used indoors or outdoors. Due to their long illumination distance and high brightness, they are often used in building outlines, signs, and large-scale lighting projects. Building lighting projects.
Here , Let me introduce one style LED strip light for you :

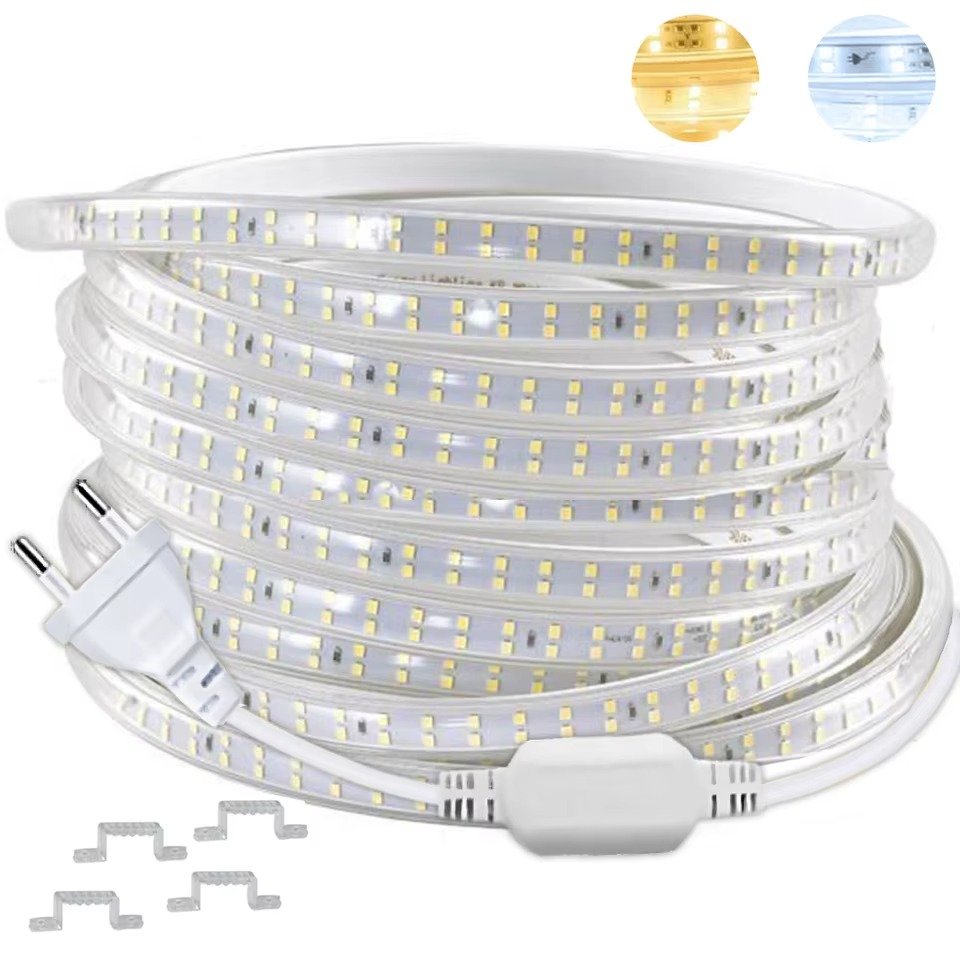

That is SMD 2835 220V 240D 12mm PCB IP67
Technical Highlights:
LED Type: Chip 2835/Chip 5050
Number of LEDs per meter: 60, 80 or 120,240 (2835); 60 LEDs (5050)
Power per meter: 7W – 10W
Input Voltage: AC110V / AC220V
Width of Printed Circuit Board: 10mm / 12mm
Color Temperature Options: 2700K, 3000K, 4000K, 5000K, 6500K and RGB
Length: Up to 50 meters per roll
IP Rating: IP67 / IP68 (optional waterproof rating)
Guarantee: 3 years
Customization: Power, color and length can all be customized according to project requirements
Separate and detailed analysis==> SMD 2835 220V 240D 12mm PCB IP67
First : What is SMD 2835 ?
1) SMD: Surface Mount Device. It refers to electronic components that can be directly attached to the surface of a circuit board.
2) 2835: Represents the size of the light-emitting diode. Specifically, it is: length 2.8mm x width 3.5mm x height (thickness) approximately 0.8mm. This naming method is derived from its length and width.
3) SMD2835: It is a surface mount LED light bulb with a size of 2.8mm x 3.5mm.
Second : Understanding the 240D and 220V
The meaning of 240D is per meter, the illumination is smooth and continuous, preventing dark spots or uneven glows. This is especially important in kitchens, offices, or display areas where consistent lighting is essential.
220V Operation
The 240D one-row version is powered directly from 220V, removing the need for external drivers or bulky converters. This makes it easier to install and more reliable for long runs of continuous light, making it ideal for both residential and commercial projects.
Third : About the PCB width
1)Traditional standard LED strips: Usually have a width of 8mm or 10mm. The circuit board is relatively thin (such as 0.8mm), and the copper foil thickness is also thin (such as 1 ounce/35 microns). The current-carrying capacity is limited.
2)Widened and thickened board (wide path board) LED strips: The width is usually 12mm, 14mm, or even more than 16mm. The circuit board substrate is thicker (such as 1.0mm+), and thickened copper foil is used (such as 2 ounces/70um, 3 ounces/105um).
Fourthly: About the waterproof (IP)
The IP rating is composed of two numbers, formatted as IPXX, representing the dust and water resistance capabilities.
- The first digit (dust protection level): 0 – 6
- The second digit (water resistance level against liquids and moisture): 0 – 9K
1.IP20/IP33: Not waterproof.
2.IP54: Protection against splashing water / Dust prevention.
3.IP65: Resistant to splashing water / Semi-waterproof.
4.IP67: Resistant to short-term immersion / Fully waterproof
5.IP68: Resistance to continuous immersion / High-level waterproofing
Advantages for wireless light strip-SMD 2835 220V 240D 12mm PCB IP67
High LED Density: 240 LEDs per meter ensure consistent, dot-free illumination..
Direct 220V Input: Plug-and-play functionality without transformers..
Cuttable Design: Can be cut every 10 cm to meet exact project requirements..
Self-Adhesive Backing: Strong glue layer ensures easy installation on smooth surfaces..
Upgraded Build: Enhanced stability and brightness compared to traditional single-row strips..
Multiple Colors and Temperatures: Options include white (6000-6500K), warm white (2700-3000K), neutral white (4000-4500K), cool light (8000-10000K),red, green, blue, pink, and icy blue..
Flexible Construction: Can bend around curves and corners for creative layouts..
Durable Protection: Available in IP20(indoor), IP65, and IP67 ratings for wet or outdoorenvironments.
Long Lifespan: Over 50,000 hours of reliable performance.
Conclusion

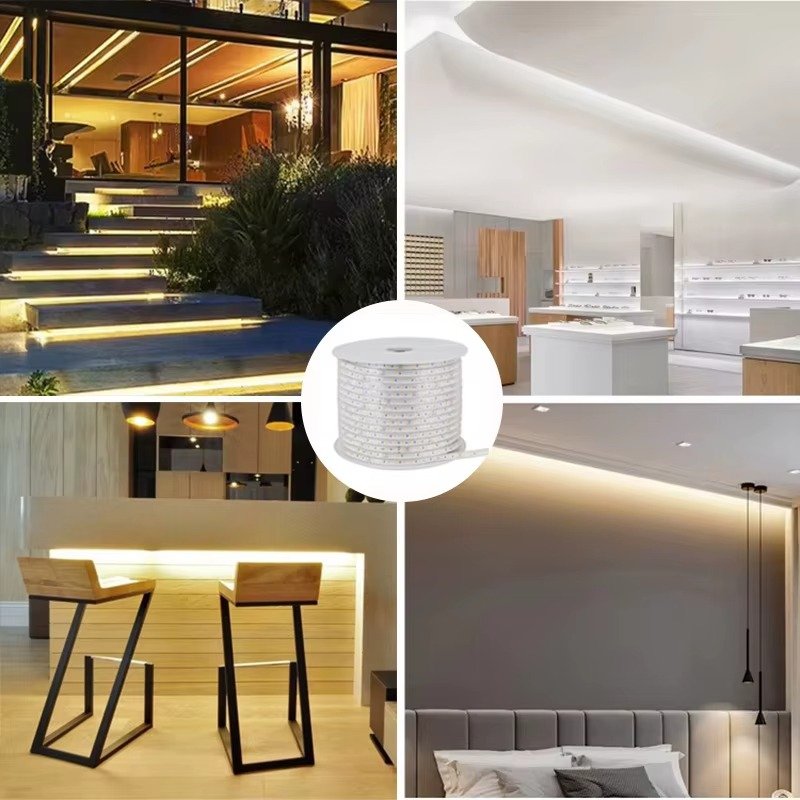

The SMD 2835 220V 240D 12mm PCB IP67 strip light is more than a lighting product—it is a blend of efficiency, elegance, and engineering. Its direct mains connection, dense LED arrangement, cuttable intervals, flexible design, and wide color options make it suitable for homes, offices, retail spaces, and creative projects alike.
With long lifespan, energy savings, and sustainable materials, this strip ensures every environment shines with brilliance, versatility, and confidence. By combining performance, practicality, and aesthetic flexibility, it truly sets a new benchmark for modern illumination.
